Natural nanofibres made of cellulose
Kiel research team discovers strongly-adhesive nanofibres in the mucous sheath of plant seeds
The seeds of some plants such as basil, watercress or plantain form a mucous envelope as soon as they come into contact with water. This cover consists of cellulose in particular, which is an important structural component of the primary cell wall of green plants, and swelling pectins, plant polysaccharides. In order to be able to investigate its physical properties, a research team from the Zoological Institute at Kiel University (CAU) used a special drying method, which gently removes the water from the cellulosic mucous sheath. The team discovered that this method can produce extremely strong nanofibres from natural cellulose. In future, they could be especially interesting for applications in biomedicine. The team’s results recently appeared as the cover story in the journal Applied Materials & Interfaces.
Thanks to their slippery mucous sheath, seeds can slide through the digestive tract of birds undigested. They are excreted unharmed, and can be dispersed in this way. It is presumed that the mucous layer provides protection. „In order to find out more about the function of the mucilage, we first wanted to study the structure and the physical properties of this seed envelope material,“ said Zoology Professor Stanislav N. Gorb, head of the „Functional Morphology and Biomechanics“ working group at the CAU. In doing so they discovered that its properties depend on the alignment of the fibres that anchor them to the seed surface.
Diverse properties: From slippery to sticky
The pectins in the shell of the seeds can absorb a large quantity of water, and thus form a gel-like capsule around the seed in a few minutes. It is anchored firmly to the surface of the seed by fine cellulose fibres with a diameter of just up to 100 nanometres, similar to the microscopic adhesive elements on the surface of highly-adhesive gecko feet. So in a sense, the fibres form the stabilising backbone of the mucous sheath.
The properties of the mucous change, depending on the water concentration. „The mucous actually makes the seeds very slippery. However, if we reduce the water content, it becomes sticky and begins to stick,“ said Stanislav Gorb, summarising a result from previous studies together with Dr Agnieszka Kreitschitz. The adhesive strength is also increased by the forces acting between the individual vertically-arranged nanofibres of the seed and the adhesive surface.
In order to be able to investigate the mucous sheath under a scanning electron microscope, the Kiel research team used a particularly gentle method, so-called critical-point drying (CPD). They dehydrated the mucous sheath of various seeds step-by-step with liquid carbon dioxide – instead of the normal method using ethanol. The advantage of this method is that evaporation of liquid carbon dioxide can be controlled under certain pressure and temperature conditions, without surface tension developing within the sheath. As a result, the research team was able to precisely remove water from the mucous, without drying out the surface of the sheath and thereby destroying the original cell structure. Through the highly-precise drying, the structural arrangement of the individual cellulose fibres remained intact.
Almost as strongly-adhesive as carbon nanotubes
The research team tested the dried cellulose fibres regarding their friction and adhesion properties, and compared them with those of synthetically-produced carbon nanotubes. Due to their outstanding properties, such as their tensile strength, electrical conductivity or their friction, these microscopic structures are interesting for numerous industrial applications of the future.
„Our tests showed that the frictional and adhesive forces of the cellulose fibres are almost as strong as with vertically-arranged carbon nanotubes,“ said Dr Clemens Schaber, first author of the study. The structural dimensions of the cellulose nanofibers are similar to the vertically aligned carbon nanotubes. Through the special drying method, they can also vary the adhesive strength in a targeted manner. In Gorb’s working group, the zoologist and biomechanic examines the functioning of biological nanofibres, and the potential to imitate them with technical means. „As a natural raw material, cellulose fibres have distinct advantages over carbon nanotubes, whose health effects have not yet been fully investigated,“ continued Schaber. Nanocellulose is primarily found in biodegradable polymer composites, which are used in biomedicine, cosmetics or the food industry.
Photos are available to download:

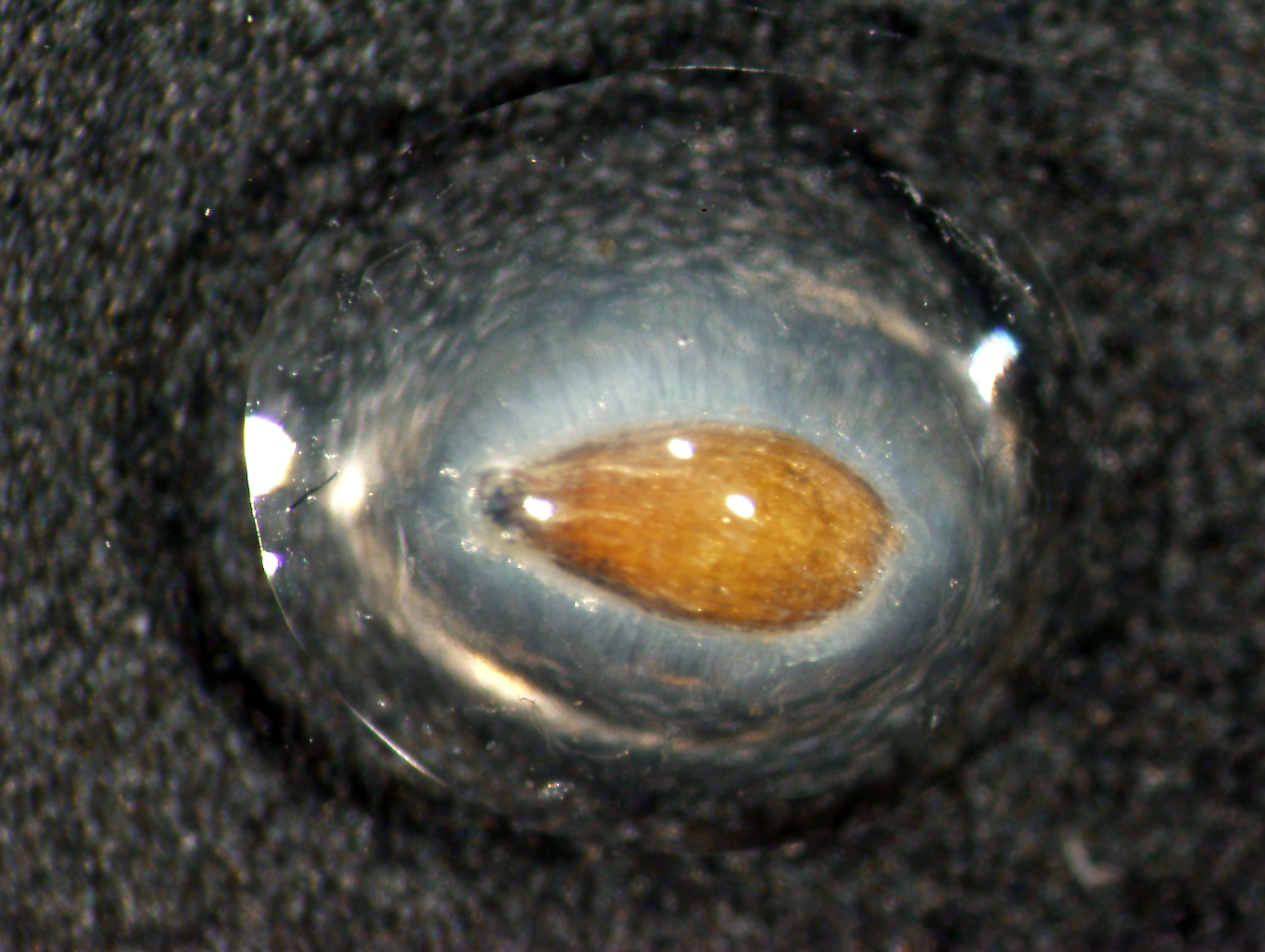

Caption: Through contact with water, the seed of Neopallasia pectinata from the family of composite plants forms a slimy sheath. The white cellulose fibres anchor it to the seed surface.
Caption: A detailed view under the microscope shows cellulose fibres on the surface of a seed of Artemisia leucodes from the family of composite plants. The actually colourless fibres were coloured purple for better visibility.
Caption: With their study, the Kiel research team made it onto the cover of the international journal Applied Materials & Interfaces.
© (2018) American Chemical Society.
Caption: Zoologist and biomechanic Clemens Schaber investigates biological nanofibres at Kiel University, in order to imitate them with technical means.
© Julia Siekmann, CAU
Professor Stanislav N. Gorb
Zoological Institute at Kiel University
Tel.: +49 (0)431/880-4513
Dr. Clemens Schaber
Tel. +49 431 880-4509
Friction-Active Surfaces Based on Free-Standing Anchored Cellulose Nanofibrils. Clemens F. Schaber, Agnieszka Kreitschitz, and Stanislav N. Gorb
ACS Applied Materials & Interfaces 2018 10 (43), 37566-37574
DOI: 10.1021/acsami.8b05972, https://pubs.acs.org/doi/10.1021/acsami.8b05972
