First detection of rain over the ocean by navigation satellites
In order to analyse climate change or provide information about natural hazards, it is important to gather knowledge about the rain. Better knowledge of precipitation and its distribution could, for example, help protect against river flooding. A new approach uses, for the first time, information contained in radar signals from navigation satellites to detect rain over the sea. The technology could help to monitor atmospheric precipitation better than before.
In order to analyse climate change or provide information on natural hazards, for example, it is important for researchers to gather knowledge about rain. Better knowledge of precipitation and its distribution could, for example, help protect against river flooding. On land, monitoring stations can provide data by collecting precipitation. At sea, it’s not so easy.
A new approach by a team around Milad Asgarimehr, who works in the GFZ section for Space Geodetic Techniques and at the Technical University of Berlin, together with researchers from the Earth System Research Laboratory of the National Oceanic and Atmospheric Administration of the USA (NOAA) and the University of Potsdam, uses information contained in radar signals from GNSS satellites (Global Navigation Satellite System) to detect rain over the sea. The technology is called GNSS Reflectometry. It is an innovative satellite remote sensing method with a broad spectrum of geophysical applications. Asgarimehr and his colleagues have now published their results in the journal Geophysical Research Letters.
According to the researchers, the new approach could help to monitor atmospheric precipitation better than before. Asgarimehr: „Our research can serve as a starting point for the development of an additional rain indicator. We can provide precipitation information using GNSS Reflectometry with unprecedented temporal resolution and spatial coverage“.
„GNSS are ‚all-weather navigation systems'“, explains Asgarimehr. „A long-held basic assumption was therefore that their signals are composed in such a way that they are not noticeably attenuated by clouds or typical precipitation in the atmosphere and therefore cannot detect precipitation”. The new study therefore uses a different effect to detect rain over the sea: The roughness of the sea surface.
GNSS reflectometry can measure sea surface roughness
That surface is ‘rough’ mainly because winds create waves on it. The strength of the satellite signals reflected by the surface is inversely proportional to their roughness: the more and the stronger the waves, the weaker the reflected signal. Recently, researchers were able to prove that it is possible to determine the wind speed over the oceans from measurements of the roughness of its surface.
Raindrops falling on a sea surface also change its roughness. Milad Asgarimehr and the team around him asked themselves: „Can GNSS Reflectometry detect precipitation over oceans?” This is also the title of their recently published study. If the answer is yes, GNSS Reflectometry satellites could detect rain almost like an observer watching raindrops disturb the mirror image of the moon on the surface of a lake at night. However, there is one major difference: unlike moonlight, GNSS signals are able to penetrate the clouds.
A new theoretical model comes to the rescue

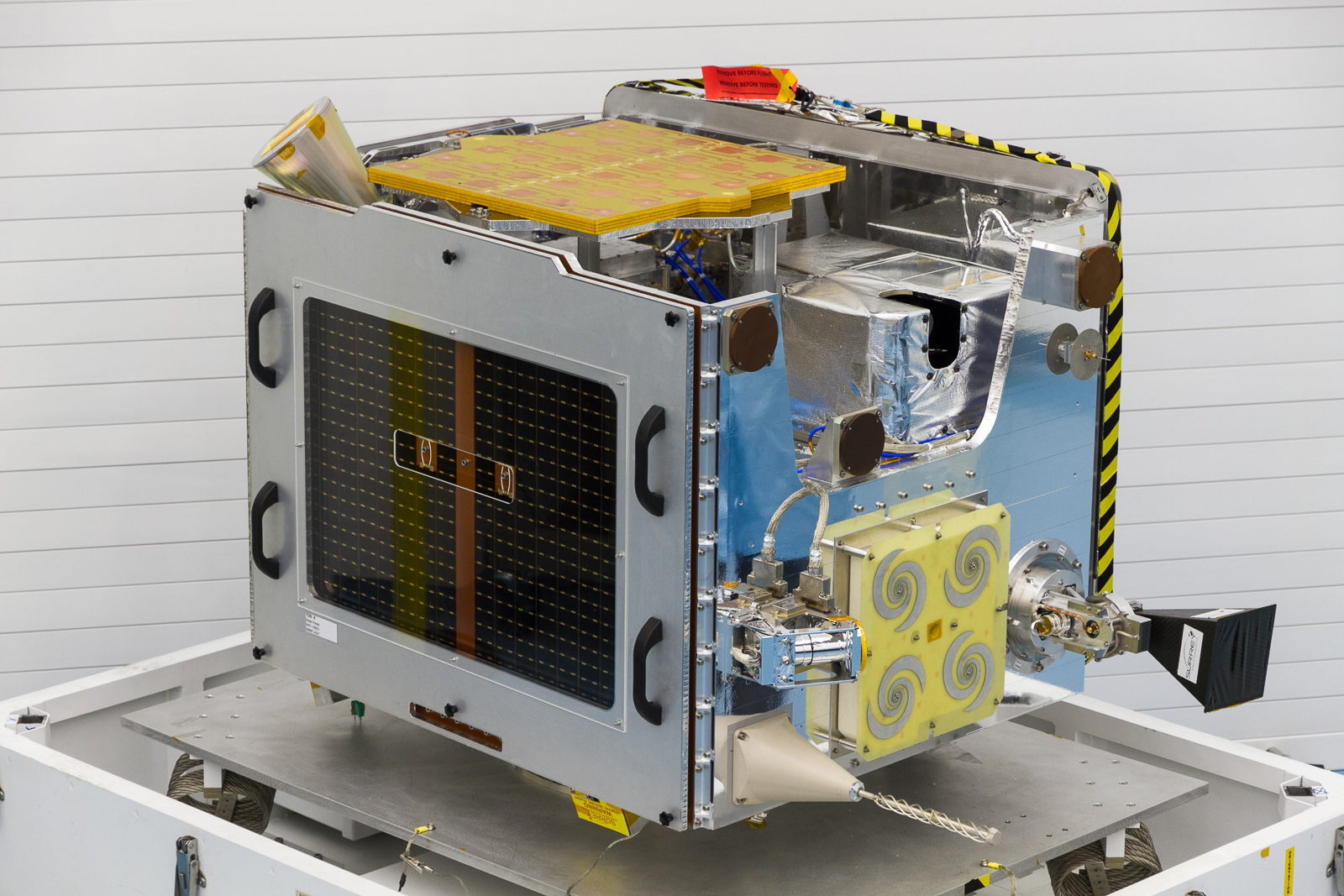

During the analysis of data from the navigation satellite TDS-1 (TechDemoSat-1), Asgarimehr found evidence that rain is detectable over the oceans if the winds are not too strong. However, his research still lacked a theoretical foundation. „For a long time it was thought that GNSS Reflectometry measurements should be insensitive to the small-scale surface roughness caused by raindrops on the sea surface“, explains Asgarimehr. But the publication of a new theoretical model in 2017 provided a plausible estimate of the physics of the scattering of radar signals on a sea surface disturbed by weak winds.
Milad Asgarimehr says: „The technology is still young and we need to further improve our physical understanding, models and algorithms to obtain deeper GNSS-based rain information. But it’s worth the effort if we can use it in the future to close data gaps in precipitation monitoring“.
Space Geodetic Techniques
Tel.: +49 331 288-1180
Asgarimehr, M., Zavorotny, V., Wickert, J., and Reich, S., 2018. Can GNSS Reflectometry Detect Precipitation Over Oceans? Geophysical Research Letters. DOI: https://dx.doi.org/10.1029/2018GL079708
