Laser processing is a matter for the head – LZH at the Hannover Messe 2019
Industry 4.0 requires processes that integrate into existing production environments: customer-specific, system-technical solutions are in demand. By way of selected laser processing heads, the Laser Zentrum Hannover e.V. (LZH) will be presenting individual comprehensive solutions for processes and systems for laser material processing at the Hannover Messe 2019.
Deposition welding, notching as well as multi-layer cutting and structuring are laser processes that can be tailored exactly to the specific requirements of the customer or their application. The laser is thus the perfect tool for the manufacturing of tomorrow.

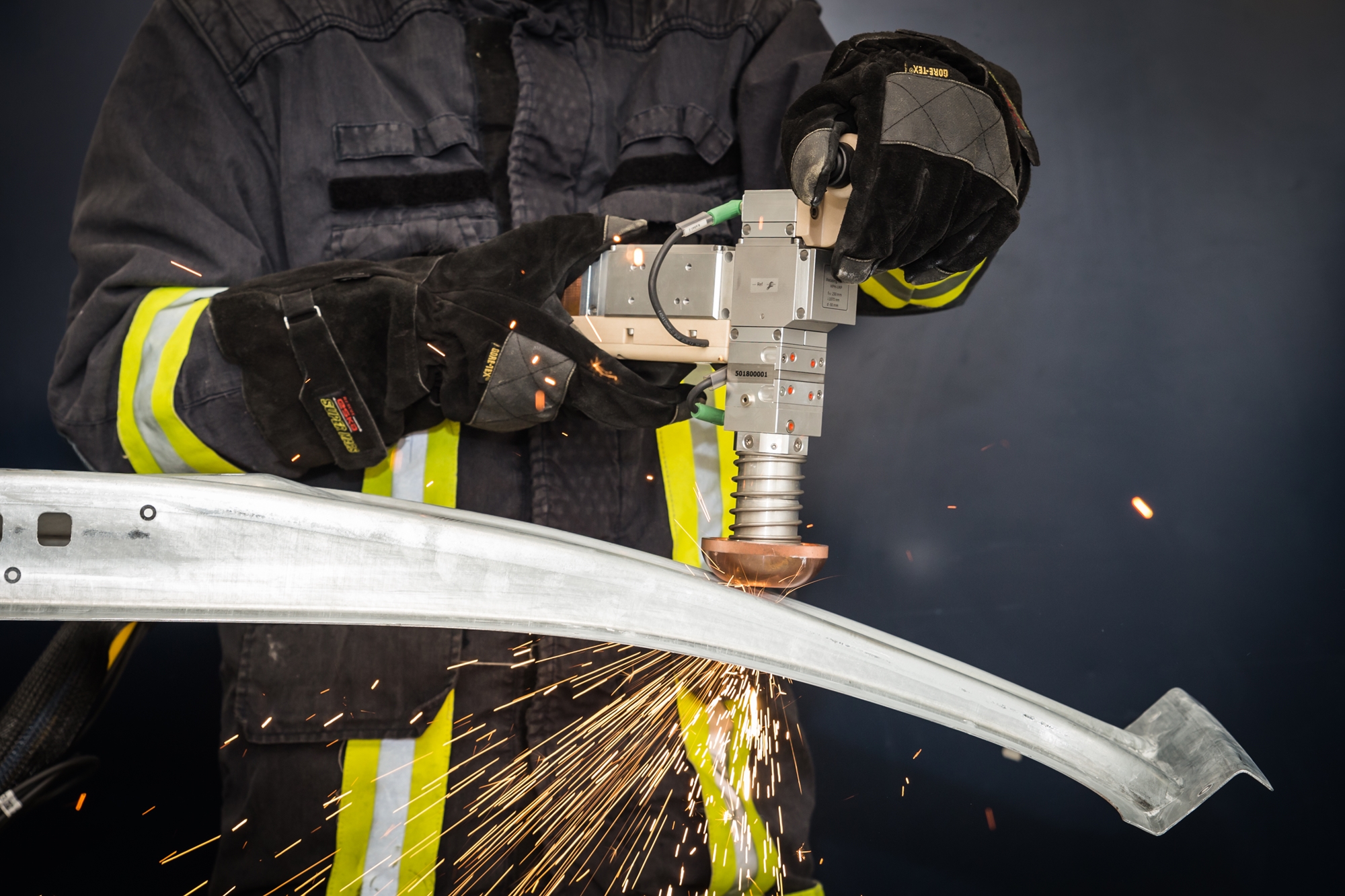

Laser rescue: cutting vehicles quickly and safely
The modern, high-strength materials of a car effectively protect the passengers in accidents; at the same time, they are a challenge for the rescue services: conventional tools take a long time to cut through the materials. The LZH has developed a mobile, hand-held laser processing head in the joint research project „LaserRettung“, which is supposed to help rescue services in traffic accidents cut vehicles open in a quick and safe manner. Thus, in the future, a quick rescue of injured persons shall be ensured.
Process control even at high speeds
At high laser material processing speeds of several meters per second, the conventional process control and monitoring reach their limits. The LZH therefore works on a high-speed control, which enables both the remote laser material processing as well as the monitoring and control of the process simultaneously. A so-called double scan head shall be integrated into the control unit, and the highly dynamic control shall process data in clock rates of up to >100 kilohertz.
In order to defuse unexploded bombs more safely in the future, the LZH and its partners in the DEFLAG project have developed a system with a cost-efficient 3D-printed laser processing head and standard optical components. The system shall be used to notch the bomb casing and deliberately trigger a deflagration. If the system is damaged during operation, the head and components can easily be replaced.

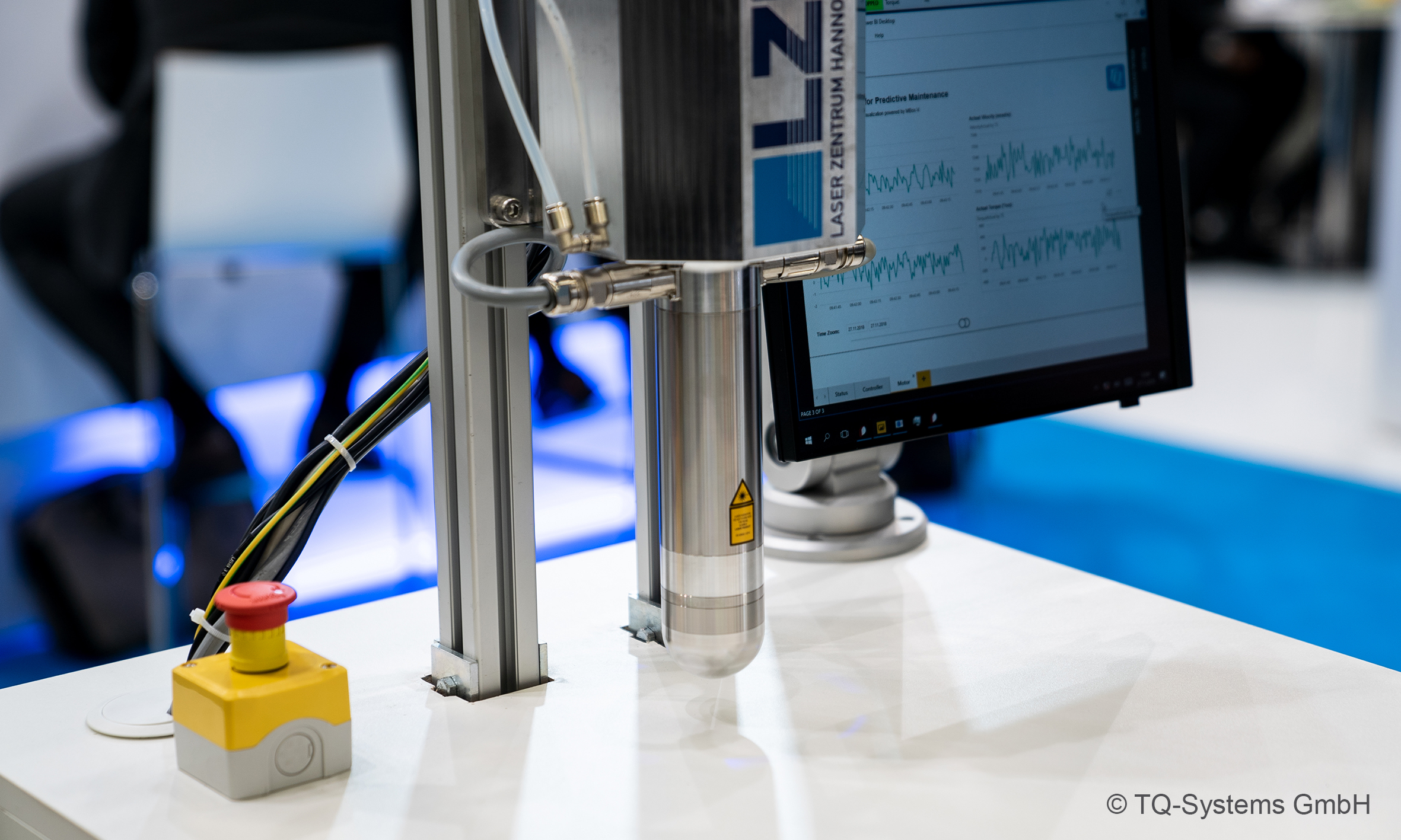

Internal processing head
Novel, lightweight aluminum engines must be coated with a layer of steel to achieve the necessary tribological and strength properties. In order to apply this layer in a cost-efficient way, the LZH has developed an internal laser processing head, the LZH-IBK. This heads makes it possible to roughen internal cylindrical surfaces, such as those in an engine block. It is not necessary to clean the components before roughening and after coating. In addition to the processing head, at the Hannover Messe, the LZH is also showing a W12 cylinder crankcase of an engine block that was structured using this process.
Direction-independent Wire Additive Manufacturing
Direction-independent Additive Manufacturing is possible with the coaxial laser wire processing head developed by the LZH. With this head, complex structures can be built, components can be repaired and coated, and structures can be attached to components. The laser beam is guided coaxially to the wire-shaped deposition material; the filler material can be fed here either cold or conductively heated by means of electricity. This significantly increases the energy efficiency of the process and makes it possible to use more cost-effective laser beam sources. An axis system or articulated robot moves the laser head during the process.
In addition to laser material processing, the LZH also pursues creative and customer-specific approaches in other areas. From components for optical applications to the finished process or to the construction of pilot plants, the work of the LZH is distinguished by expertise and innovative, individual solutions.
There are two figures for this press release.
