Porsche launches low-volume production with bio-based materials from Fraunhofer WKI
Automaker Porsche is leveraging the benefits of organic materials in automoti-ve manufacturing applications. The new 718 Cayman GT4 Clubsport features body parts made of natural-fiber composite materials developed in the Applica-tion Center for Wood Fiber Research HOFZET, which is part of the Fraunhofer Institute for Wood Research, Wilhelm-Klauditz-Institut WKI, together with the Institute for Bioplastics and Biocomposites IfBB of Hannover University of Ap-plied Sciences and Arts.
Registration statistics indicate that new cars are progressively becoming heavier, due for example to improved safety functions and more electronic equipment. This weight gain also means higher levels of fuel consumption, aspects contrary to the general goal of reducing CO2 emissions. Weight is also an important factor for e-cars, since they require larger and thus heavier batteries in order to maximize range, a decisive sales criterium. Accordingly, new developments in lightweight design are an absolute prerequisite for truly efficient e-cars. According to a study by business consultants at McKinsey, the share of lightweight parts in automobiles will have to rise from 30 to 70 percent by 2030 to compensate for the vehicle weight increase resulting from electric drives and motors.
Until now the favored solution here has been lightweight steels and carbon-fiber-reinforced plastics. But this solution also has its disadvantages: First of all, it entails sub-stantial challenges in machining, repairs and recycling. Secondly, manufacturing these materials is highly energy-intensive, subtracting from the positive environmental aspect of weight reduction.
Good complement to carbon fibers
Researchers at Fraunhofer WKI thus posed the question of whether or not other fibrous materials could be used to reduce component weight, only using carbon fibers in those places where they represent a structural advantage. They investigated various readily available ecological materials in terms of their technical properties, availability and cost-efficiency, since a feasible solution for industry must have positive technical, ecological and economic impacts.
Natural-fiber-reinforced plastics turned out to be the answer. As components in organic composites, vegetable fibers are a sustainable alternative for lightweight vehicle bodies. The biogenic component improves the ecological impact of industrial high-performance composite materials during manufacturing, use and disposal.
Economically speaking, the use of renewable raw materials is beneficial because natural flax, hemp, wood and jute fibers are less expensive than carbon fibers and require less energy to manufacture. Thus the advantages of weight reduction don’t come with a prohibitive price tag.
And there are additional advantages in industrial processing and with applications in the vehicle: The naturally grown structure of organic composites gives materials acoustic damping properties and reduces splintering, which is important in the event of a colli-sion.
Porsche starts series production
These arguments were convincing enough to Porsche. Joining forces with Porsche Mo-torsport, scientists at Fraunhofer WKI first tested organic materials for series readiness under extreme conditions on a Porsche Cayman GT4 Clubsport using the mobile devel-opment laboratory of the German “Four Motors” racing team.
“The third generation of the ‘Bioconcept-Car’ has been on the race track since 2015. The tests combine the advantage of extreme stress with a vehicle that is also street-legal after modifications. The partnership with Porsche AG also enables development under the realistic conditions of an automobile manufacturer,” says Ole Hansen, project man-ager at the Fraunhofer WKI Application Center for Wood Fiber Research HOFZET. “We’ve been able to continuously improve the material properties over the last four years.”
The German Federal Ministry for Food and Agriculture BMEL recognized the potential benefits of natural fibers from the very beginning and today still accompanies the project as a strategic partner. The BMEL promotes the development of biogenic lightweight components in the funding program “Renewable Resources” with the central coordinat-ing agency for renewable resources, Fachagentur Nachwachsende Rohstoffe e.V. FNR.

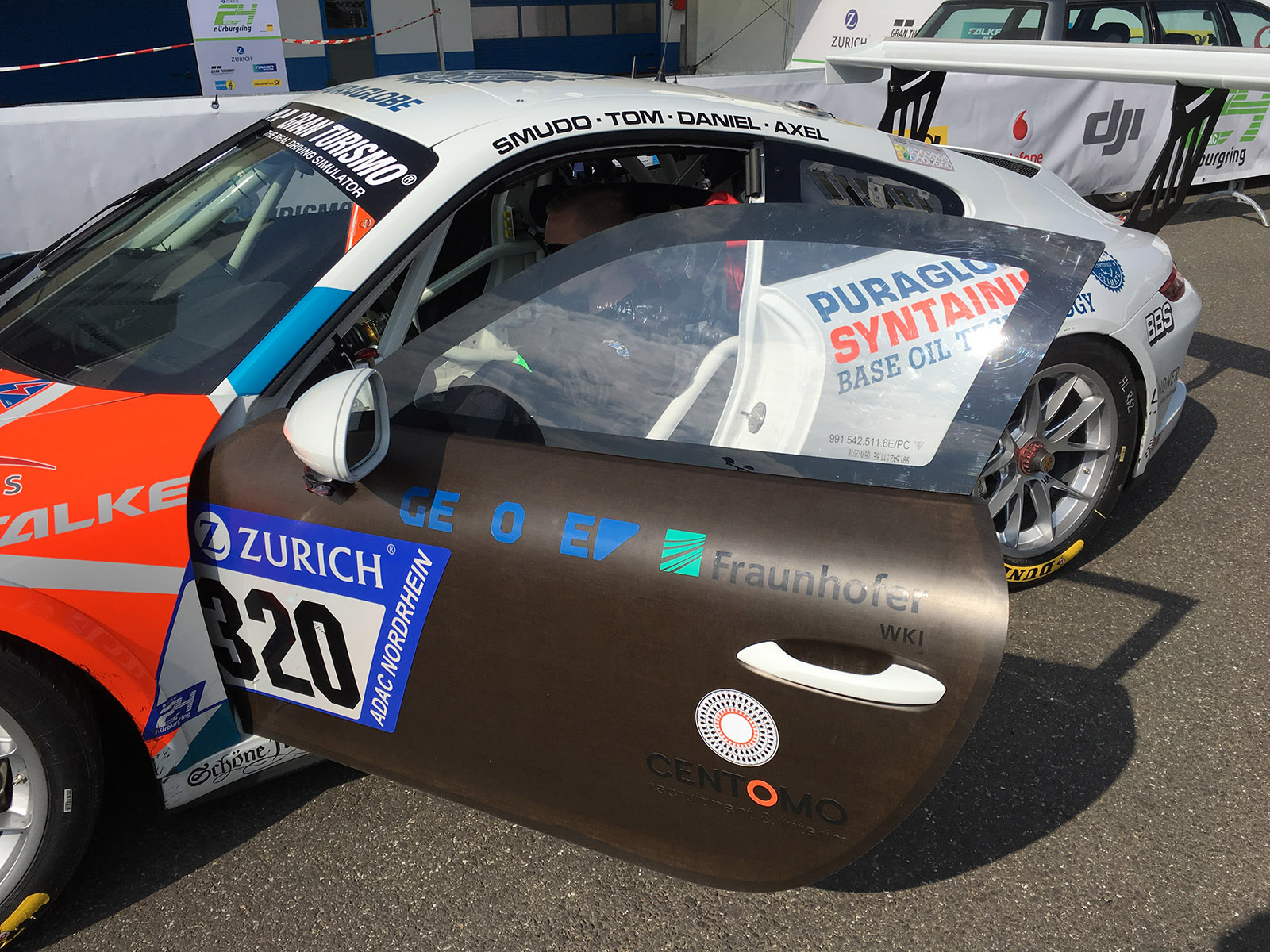

The years of experience with the ‘Bioconcept-Car’ were integrated in material develop-ment for the parts of the new 718 Cayman GT4 Clubsport, the first car in series produc-tion to feature body parts made of a natural-fiber composite material. The driver and passenger doors as well as the rear wing are made using a mixture of organic fibers. And the Cayman is a real lightweight, weighing in at only 1320 kilograms. A factor here is the 60-percent weight saving resulting from the use of organic composite materials instead of steel in the doors.
The composite material consists of a thermoset polymer matrix system reinforced with organic fibers. An organic fiber mesh is used because the raw materials are readily available, it exhibits high tensile strength, and is particularly fine, homogenous and drapable, easily fitting part shapes. The ease with which it can be produced to precise dimensions facilitate machining and quality assurance, even in combination with other conventionally manufactured components.
Basis for high-volume production
These aspects are an important prerequisite for high-volume production. Fraunhofer WKI also considered other factors in its investigations, including concepts for end-of-life recy-cling or reuse and scale-up approaches for parts that are to be produced in greater quantities.
“After extensive testing under extreme conditions on the race track we continued to evaluate our parts, which ultimately led to the conclusion that these ecologically benefi-cial organic materials fulfill the criteria for volume production,” Ole Hansen adds.
Smudo, front-man of the popular German rap group “Fantastische Vier” and permanent pilot of the Four Motors ‘Bioconcept-Car’, has tested its practical viability, as has a spe-cial passenger who enjoyed a test drive on the Nürburgring race course last August: German Federal Minister for Food and Agriculture, Julia Klöckner.
