Flash lamp annealing: Energy-effective process for efficient annealing of large-area substrates
In thin-film technology, heat treatment is often used to selectively improve material properties of thin films, such as their crystallinity or density, and hence their electrical and optical properties. However, these are energy-intensive and time-intensive techniques, associated with large facility footprints. That makes their applicability for large-area substrate formats difficult or even impossible.Flash lamp annealing offers a smart solution to this problem. In cooperation between ROVAK GmbH and the FEP, Electron Beam and Plasma Technology FEP this technology has been studied and further developed for large-area applications as part of the project InnoFlash funded by the Saxony SMWA.

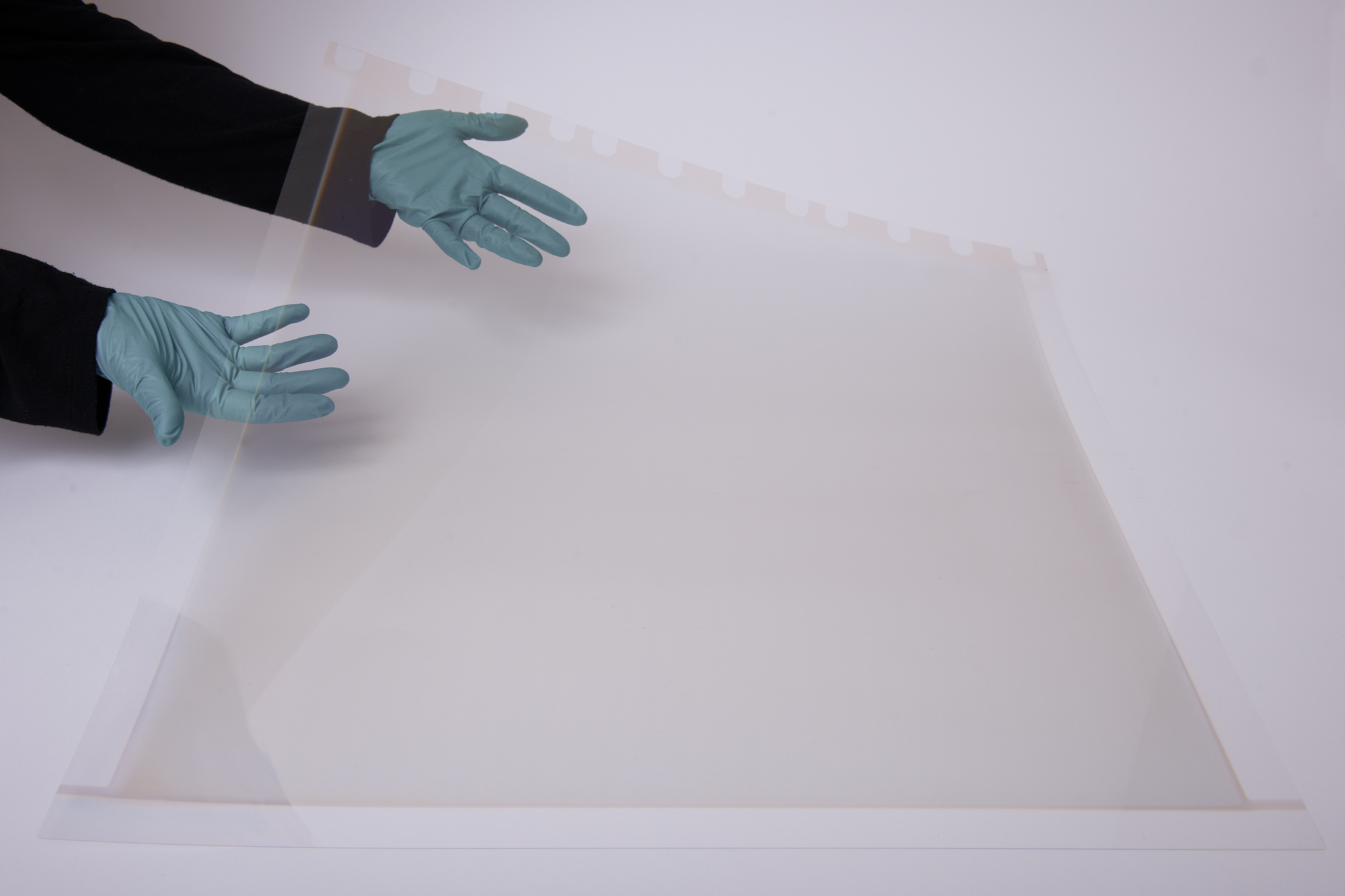

Thermal treatment of coated glass, plastics and wafers is a common process for improving the layer and surface properties of large-area substrates. In conventional furnace-annealing processes, the entire substrate is heated and must cool down slowly after the treatment. This is time and energy intensive and can be problematic for treating large substrate areas. In addition, long thermal processes for thin-film technology lead to undesirable diffusion phenomena and may therefore require additional diffusion suppressing barrier layers. The production process thus becomes more complex. Flash lamp annealing (FLA) offers a good alternative to conventional furnace annealing for the optimization of film properties, e. g. electrical and optical properties, especially on large-area substrates.
FLA is an innovative process for thermal pre- and post-treatment of functional coatings and sensitive substrates using xenon flash lamps working in a time period of only a few milliseconds. A significant advantage compared to conventional processes is the application of thermal energy to a restricted a local area on the substrate (such as just the surface, for example). This reduces the thermal load and hence the temperature throughout the entire substrate. Thus, this process is more efficient and less expensive compared to furnace processes. Due to the small footprint of the FLA setup, this process can be implemented into almost any production line. Moreover, FLA is less energy-intensive, which results in a reduction of CO2 emissions.
In collaboration with ROVAK GmbH, researchers of the Fraunhofer FEP are investigating and experimenting with new electrical circuit designs for energizing flash lamps as well as for enhancing process control and measurement technology. ROVAK’s know-how in the field of technology and system development for pulsed high-power flash lamps provides the foundation for this advanced work.
Dr. Manuela Junghähnel, head of the Sheet-to-Sheet Technologies and Precision Coating department at Fraunhofer FEP, explains: “We have focused on inline FLA. Our investigations have enabled us to treat large surface areas under conditions of continuous operation. Treatment speeds of up to 6 meters per minute and widths of up to 3.2 meters are feasible. This annealing method primarily treats just the regions close to the surface. It also allows the processing of temperature-sensitive materials, whereat a maximum surface temperature of up to 2,000°C can be achieved.”

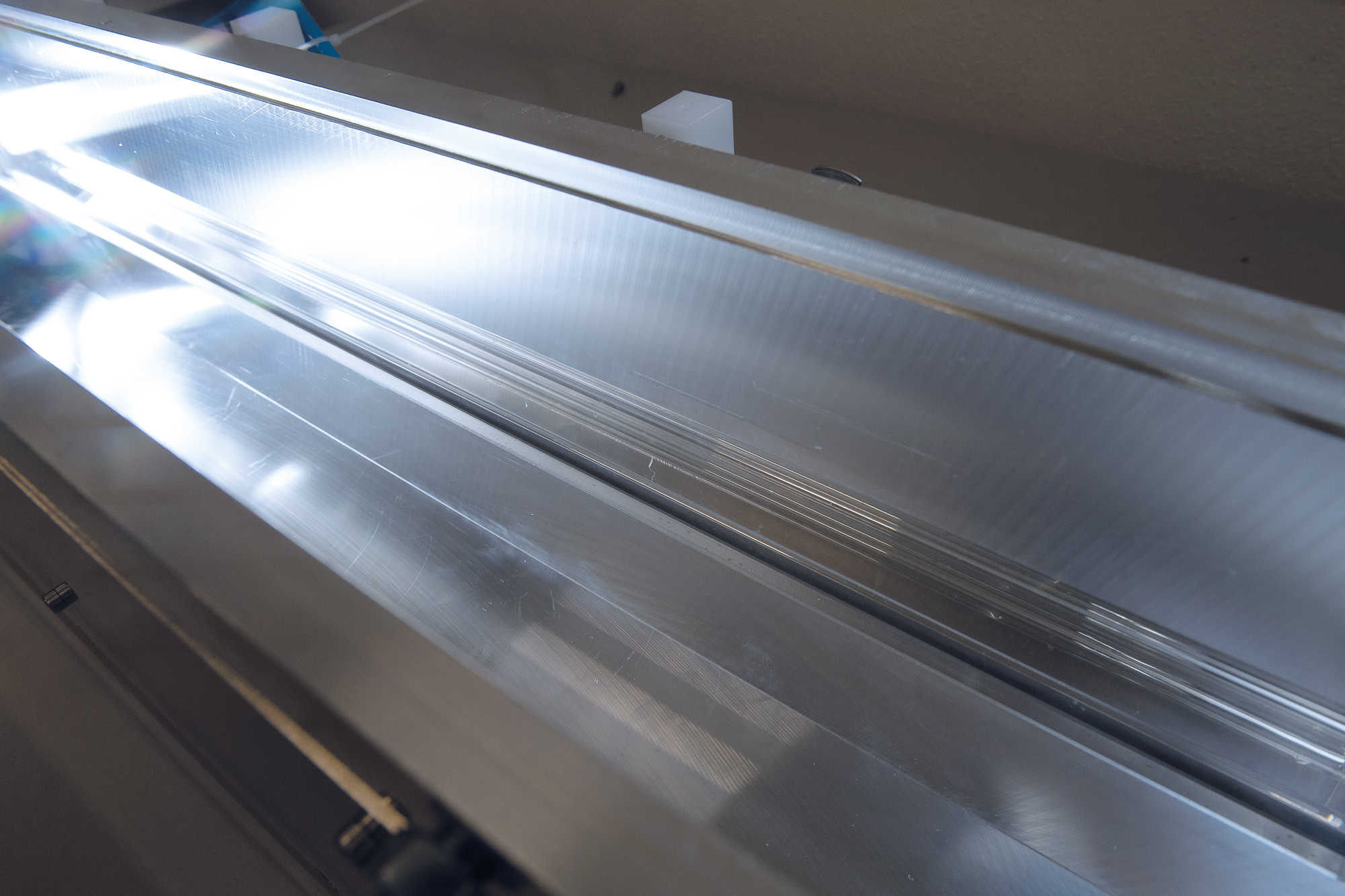

Operation of long flash lamps (up to 1000 mm) was investigated for treating large substrate areas. The difficulty was to ensure a safe and reproducible flash operation, since a reliable flash ignition as well as a uniform distribution of the deposited energy density are necessary characteristics for high-quality treatment. In addition, handling the high currents and voltages that occur in the millisecond range for the FLA process posed a challenge. Effective process control is necessary for using FLA in industrial applications. To accomplish this, a measuring system has been investigated to record the temperature profile of the surface during treatment using time-resolved emission detection. This allows the exact determination of the annealing effect of each individual flash.
FLA in its conventional form has already reached the marketability stage. After completion of the investigations at the Fraunhofer FEP, the results of the project will be able to be used by ROVAK to launch FLA systems adapted for efficient, large-area treatment.
about the project:
Co-funded by tax revenue on the basis of the budget adopted by the members of the Saxon State Parliament.
Funded by the Saxon State Ministry for Economics, Labour and Transport
Funding reference: 100349243/3698
