Technology innovation for neurology: Brain signal measurement using printed tattoo electrodes
TU Graz researcher Francesco Greco has developed ultra-light tattoo electrodes that are hardly noticeable on the skin and make long-term measurements of brain activity cheaper and easier.

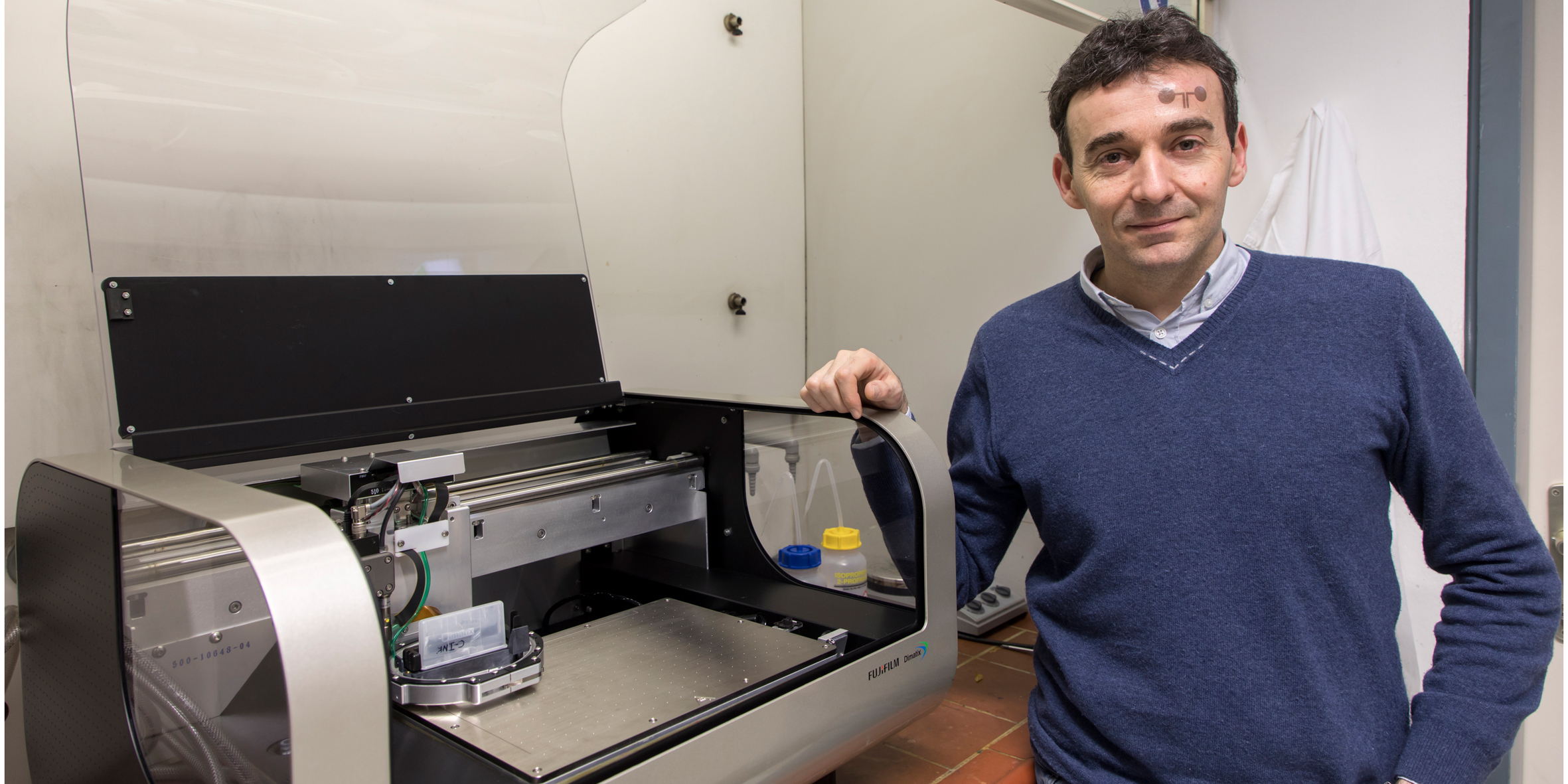

In 2015 Francesco Greco, head of the Laboratory of Applied Materials for Printed and Soft electronics (LAMPSe, http://lampselab.com/) at the Institute of Solid State Physics at Graz University of Technology, developed so-called „tattoo electrodes“ together with Italian scientists. These are conductive polymers that are printed using an inkjet printer on standard tattoo paper and then stuck to the skin like transfers to measure heart or muscle activity.
This type of electrode, optimised in 2018 (https://www.tugraz.at/en/tu-graz/services/news-stories/tu-graz-news/singleview/article/tattoo-electrodes-from-an-ink-jet-printer/), opened up completely new paths in electrophysiological examinations, such as electrocardiography (ECG) or electromyography (EMG). Thanks to a thickness of 700 to 800 nanometres – that is about 100 times thinner than a human hair – the tattoos adapt to uneven skin and are hardly noticeable on the body. Moreover, the „tattoos“ are dry electrodes; in contrast to gel electrodes, they work without a liquid interface and cannot dry out. They are excellently suited for long-term measurements. Even hairs growing through the tattoo do not interfere with the signal recording.
New generation of tattoo electrodes

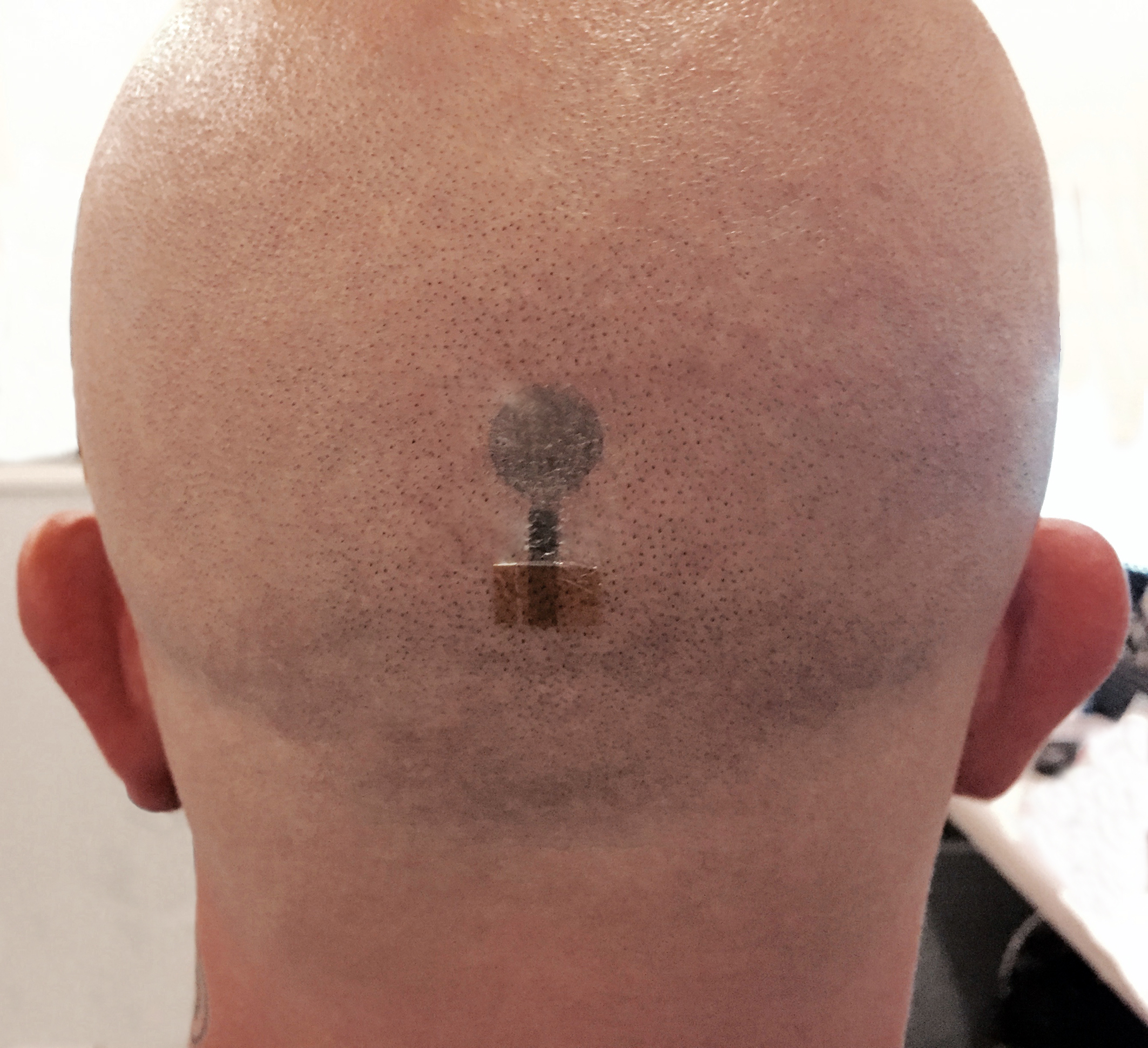

Building on this pioneering achievement, Greco, together with Esma Ismailova (Department of Bioelectronics, École Nationale Supérieure des Mines de Saint-Étienne, France) and Laura Ferrari (The BioRobotics Institute, Scuola Superiore Sant’Anna, Italy), has now achieved a further milestone in the measurement of bioelectrical signals: the group has modified the tattoo electrodes in such a way that they can also be used in electroencephalography (EEG) – i.e. to measure brain activity.
What are tattoo electrodes? Francesco Greco explains it in this video (https://www.youtube.com/watch?v=12n47zYXuB8&vl=de).
To do this, the researchers used the same approach as in 2018, i.e. inkjet printing of conductive polymer on tattoo paper. The composition and thickness of the transfer paper and conductive polymer have been optimized to achieve an even better connection between the tattoo electrode and the skin and to record the EEG signals with maximum quality, because: „Brain waves are in the low frequency range and EEG signals have a very low amplitude. They are much more difficult to capture in high quality than EMG or ECG signals,“ explains Laura Ferrari, who worked on this project during her PhD and is now a postdoc researcher in France.
Tests under real clinical conditions have shown that the EEG measurement with the optimized tattoos is as successful as with conventional EEG electrodes. „Due to inkjet printing and the commercially available substrates, however, our tattoos are significantly less expensive than current EEG electrodes and also offer more advantages in terms of wearing comfort and long-term measurements in direct comparison,“ says Greco.
First ever MEG-compatible dry electrodes
The new tattoo electrodes are the very first dry electrode type that is suitable for long-term EEG measurements and at the same time compatible with magneto-encephalography (MEG). MEG is a well-established method for monitoring brain activity, for which so far only so-called „wet electrodes“ can be used. Such electrodes work on the basis of electrolyte, gel or an electrode paste, and thus dry out quickly and are unsuitable for long-term measurements. The new generation of tattoo electrodes consists exclusively of conductive polymers, i.e. it does not contain any metals which can be problematic for MEG examinations, and is printed exclusively with inkjet. „With our method, we produce the perfect MEG-compatible electrode while reducing costs and production time,“ says Greco happily. The TU Graz researcher is currently spinning ideas on how this technology can be used in clinics and in neuroengineering as well as in the field of brain computer interfaces.
Details of the latest development of the Styrian-Italian-French research alliance can be read in the journal npj Flexible Electronics.
The research at the Laboratory of Applied Materials for Printed and Soft electronics is carried out at TU Graz in the Field of Expertise „Advanced Materials Science“ (https://www.tugraz.at/en/research/fields-of-expertise/advanced-materials-science/overview-advanced-materials-science/), one of the five strategic research core areas of the University. Participating researchers are members of NAWI Graz Physics (https://www.nawigraz.at/en/teaching/physics/).
Researchers from the following institutes are involved in the project:
_Institute of Solid State Physics at TU Graz, Graz, Austria (https://www.if.tugraz.at/index.php?english)
_Center for MicroBiorobotics, Istituto Italiano di Tecnologia, Pontedera, Italy (https://bsr.iit.it/)
_The BioRobotics Institute, Scuola Superiore Sant’Anna, Pontedera, Italy (https://www.santannapisa.it/en/institute/biorobotics/biorobotics-institute)
_Department of Bioelectronics – MINES Saint Etienne, Gardanne, France (https://www.mines-stetienne.fr/en/research/scientific-departments/department-of-bioelectronics-bel/)
_Aix Marseille Univ, INSERM, Institut de Neuroscience des Systèmes (INS), Marseille, France (https://ins-amu.fr/)
Dr. Francesco GRECO
TU Graz | Institute of Solid State Physics
Petersgasse 16/I, 8010 Graz
Phone: +43 316 873 8471
Conducting polymer tattoo electrodes in clinical electro- and magneto-encephalography
Laura M. Ferrari, Usein Ismailov, Jean-Michel Badier, Francesco Greco & Esma Ismailova
npj Flex Electron 4, 4 (2020).
