Faster and more efficient information transfer
Physicists use antiferromagnetic rust to carry information over long distances at room temperature
Be it with smartphones, laptops, or mainframes: The transmission, processing, and storage of information is currently based on a single class of material – as it was in the early days of computer science about 60 years ago. A new class of magnetic materials, however, could raise information technology to a new level. Antiferromagnetic insulators enable computing speeds that are a thousand times faster than conventional electronics, with significantly less heating. Components could be packed closer together and logic modules could thus become smaller, which has so far been limited due to the increased heating of current components.
Information transfer at room temperature
So far, the problem has been that the information transfer in antiferromagnetic insulators only worked at low temperatures. But who wants to put their smartphones in the freezer to be able to use it? Physicists at Johannes Gutenberg University Mainz (JGU) have now been able to eliminate this shortcoming, together with experimentalists from the CNRS/Thales lab, the CEA Grenoble, and the National High Field Laboratory in France as well as theorists from the Center for Quantum Spintronics (QuSpin) at the Norwegian University of Science and Technology. „We were able to transmit and process information in a standard antiferromagnetic insulator at room temperature – and to do so over long enough distances to enable information processing to occur“, said JGU scientist Andrew Ross. The researchers used iron oxide (α-Fe₂O₃), the main component of rust, as an antiferromagnetic insulator, because iron oxide is widespread and easy to manufacture.
The transfer of information in magnetic insulators is made possible by excitations of magnetic order known as magnons. These move as waves through magnetic materials, similar to how waves move across the water surface of a pond after a stone has been thrown into it. Previously, it was believed that these waves must have circular polarization in order to efficiently transmit information. In iron oxide, such circular polarization occurs only at low temperatures. However, the international research team was able to transmit magnons over exceptionally long distances even at room temperature. But how did that work? „We realized that in antiferromagnets with a single plane, two magnons with linear polarization can overlap and migrate together. They complement each other to form an approximately circular polarization,“ explained Dr. Romain Lebrun, researcher at the joint CNRS/Thales laboratory in Paris who previously worked in Mainz. „The possibility of using iron oxide at room temperature makes it an ideal playground for the development of ultra-fast spintronic devices based on antiferromagnetic insulators.“
Extremely low attenuation allows for energy-efficient transmission
An important question in the process of information transfer is how quickly the information is lost when moving through magnetic materials. This can be recorded quantitatively with the value of the magnetic damping. „The iron oxide examined has one of the lowest magnetic attenuations that has ever been reported in magnetic materials,“ explained Professor Mathias Kläui from the JGU Institute of Physics. „We anticipate that high magnetic field techniques will show that other antiferromagnetic materials have similarly low attenuation, which is crucial for the development of a new generation of spintronic devices. We are pursuing such low power magnetic technologies in a long-term collaboration with our colleagues at QuSpin in Norway and I am happy to see that another piece of exciting work as come out of this collaboration.“
The research has been published recently in Nature Communications and was financed by the EU Research and Innovation program Horizon 2020, the German Research Foundation (DFG), and the Norwegian Research Council.

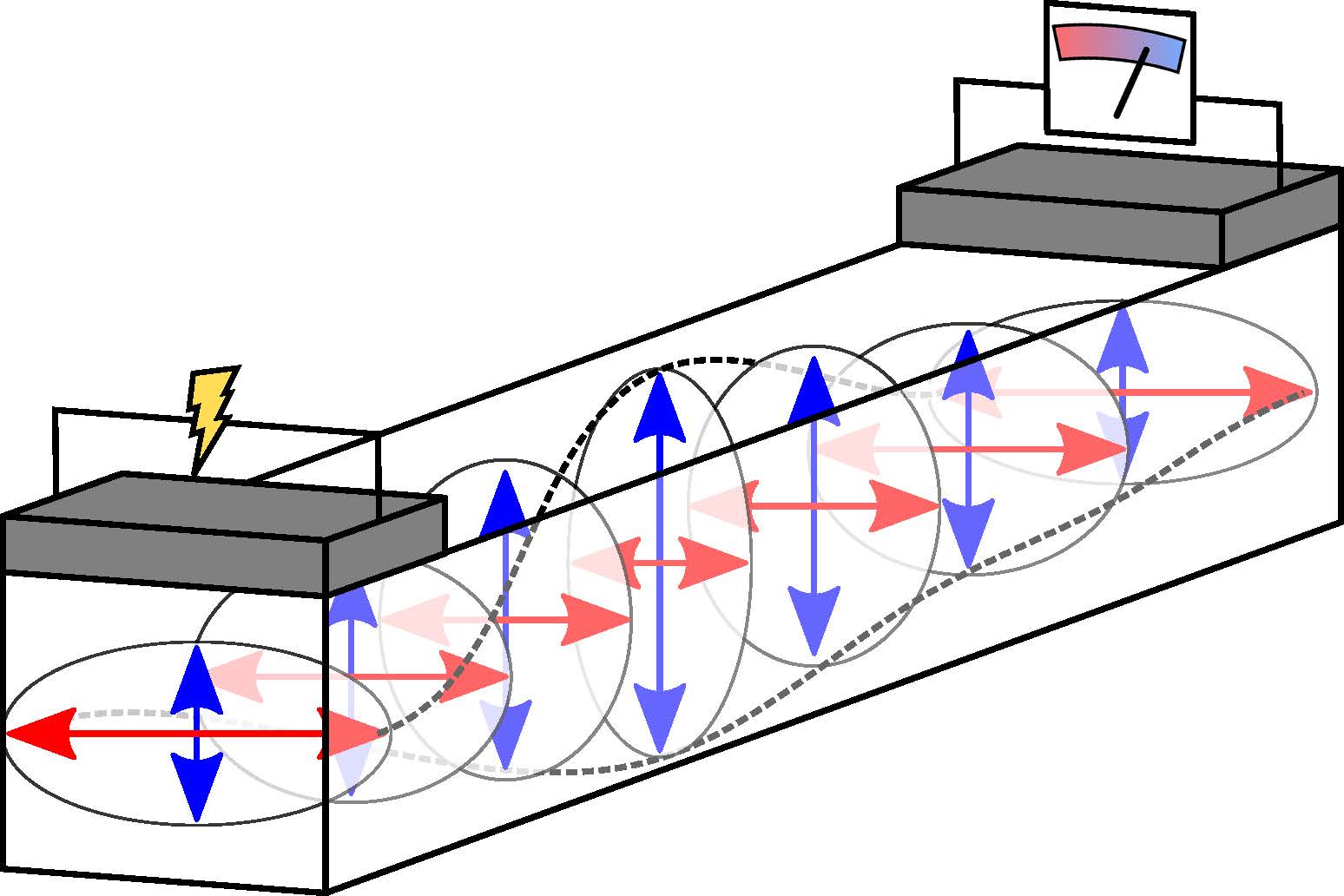

An electrical current excites the superposition of two magnons with linear polarization (indicated by the red and blue arrows). Subsequently, energy is transported through the antiferromagnetic insulator. This can be detected as electrical voltage.
ill./©: Andrew Ross, JGU
https://www.klaeui-lab.physik.uni-mainz.de – Kläui Lab at the JGU Institute of Physics ;
https://www.blogs.uni-mainz.de/fb08-iph-eng/ – Institute of Physics at JGU ;
https://topdyn.uni-mainz.de/ – TopDyn research area at JGU ;
https://trr173.spin-engineering.de/ – Transregional Collaborative Research Center 173 „Spin+X“
https://www.uni-mainz.de/presse/aktuell/11958_ENG_HTML.php – press release „Storing information in antiferromagnetic materials“ (24 Aug. 2020) ;
https://www.uni-mainz.de/presse/aktuell/10211_ENG_HTML.php – press release „Physicists make one step toward insulating antiferromagnetic materials in future computers“ (25 Oct. 2019) ;
https://www.uni-mainz.de/presse/aktuell/6140_ENG_HTML.php – press release „New devices based on rust could reduce excess heat in computers“ (17 Sept. 2018) ;
http://www.uni-mainz.de/presse/aktuell/4356_ENG_HTML.php – press release „Construction set of magnon logic extended: Magnon spin currents can be controlled via spin valve structure“ (14 March 2018) ;
http://www.uni-mainz.de/presse/aktuell/3937_ENG_HTML.php – press release „Antiferromagnets prove their potential for spin-based information technology“ (29 Jan. 2018)
Professor Dr. Mathias Kläui
Condensed Matter Theory
Institute of Physics
Johannes Gutenberg University Mainz
55099 Mainz, GERMANY
phone +49 6131 39-23633
Dr. Romain Lebrun
Unite Mixte de Physique CNRS/Thales
1, avenue Augustin Fresnel
91767 Palaiseau Cedex, FRANCE
R. Lebrun et al., Long-distance spin-transport across the Morin phase transition up to room temperature in ultra-low damping single crystals of the antiferromagnet α-Fe2O3, Nature Communications 11: 6332, 10 December 2020,
