EHT Astronomers Image Magnetic Fields at the Edge of M 87’s Black Hole
The Event Horizon Telescope (EHT) team, including astronomers at the Max-Planck-Institut für Radioastronomie, has revealed today new observations that are key to explaining how the M 87 galaxy is able to launch an energetic jet from its core.

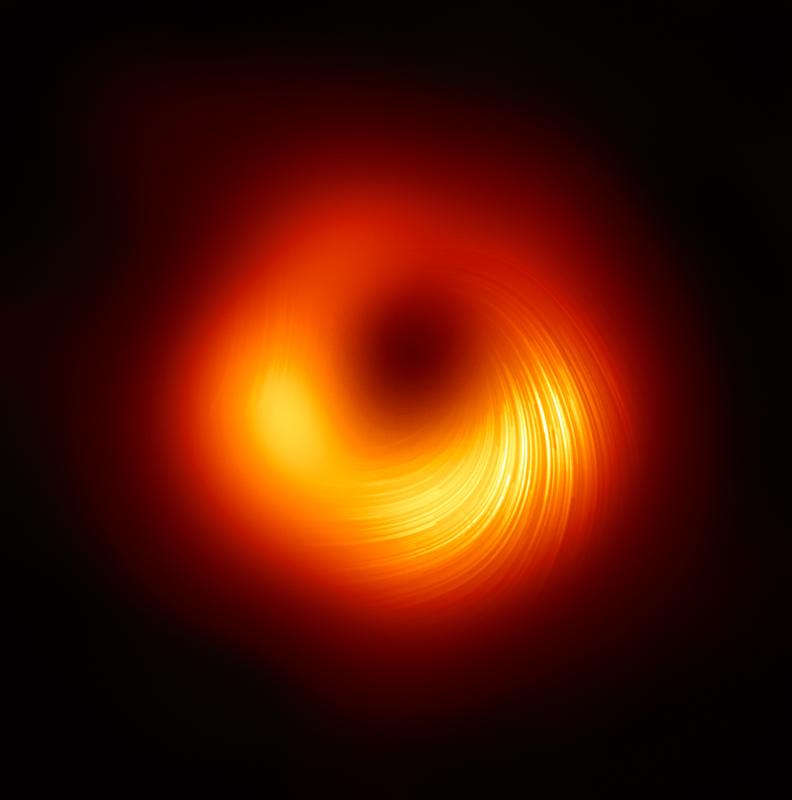

The new view of the massive object at the centre of the M 87 galaxy shows how it looks in polarised light. For the first time, astronomers have been able to measure the polarisation, a signature of magnetic fields, this close to the edge of a black hole. They publish a key snapshot in order to understand how a jet larger than the galaxy is launched.
On 10 April 2019, the first ever image of a black hole was released, revealing a bright ring-like structure with a dark central region — the black hole’s shadow. Since then, the EHT collaboration has delved deeper into their data, collected by telescopes around the globe in 2017, discovering that a significant fraction of the light around the supermassive black hole at the heart of the M87 galaxy in a distance of 55 million light years is polarised.
The physics behind the first image of a black hole
“The polarisation of light carries information that allows us to better understand the physics behind the image we saw in April 2019,” explains Monika Mościbrodzka, Coordinator of the EHT Polarimetry Working Group and Assistant Professor at Radboud University in the Netherlands.
Light becomes polarised when it goes through certain filters, like the lenses of polarised sunglasses, or when it is emitted in hot regions of space that are magnetised. In the same way polarised sunglasses help us see better by reducing reflections and glare from bright surfaces, astronomers can sharpen their vision of the region around the black hole by looking at how the light originating from there is polarised. Specifically, polarisation allows astronomers to map the magnetic field lines present at the inner edge of the black hole.
“This is key to understanding the powerful jet that is launched from this region,” says Alan Roy, project scientist for VLBI (Very Large Baseline Interferometry) with MPIfR’s APEX (the Atacama Pathfinder Experiment) telescope in northern Chile.
The bright jet of energy and matter that emerges from M87’s core and extends at least 100,000 light-years from its centre is one of the galaxy’s most mysterious and energetic features. Most matter lying close to the edge of a black hole falls in. However, some of the surrounding particles escape moments before capture and are blown far out into space in the form of a jet.
How matter behaves near a black hole
Astronomers have relied on different models of how matter behaves near the black hole to better understand this process. But they still don’t know exactly how a jet larger than the galaxy is launched from a very compact region at its centre — comparable in size to the Solar System. With the new EHT image of the black hole and its shadow in polarised light, astronomers managed for the first time to make a key snapshot of the launching mechanism at the scales where the jet is forming.
Observing the heart of M87
To observe the very compact launching region of the jet at the heart of the M 87 galaxy, the collaboration linked eight telescopes around the world, including APEX and the IRAM 30-m telescope in Pico Veleta, Spain, to create a virtual Earth-sized telescope, the EHT. Data were put together and processed at two special-purpose high-performance computers, called correlators, one of them at the MPIfR in Bonn. The impressive resolution of 20 micro-arcseconds only obtained with the EHT is equivalent to that needed to measure the length of a credit card on the surface of the Moon.
This allowed the team to directly observe the black hole shadow and the ring of light around it, with the new polarised-light image clearly showing that the ring is magnetised. The results are published in two separate papers in The Astrophysical Journal Letters by the worldwide EHT collaboration project, which involves over 300 researchers from multiple organisations and universities.
“The EHT is a one-of-a-kind facility to test the laws of physics in a region of extreme gravity. It gives us a unique chance to look at phenomena we have never studied. Future EHT observations will reveal even more information about the mysterious region of space near the event horizons of supermassive black holes”, concludes J. Anton Zensus, founding chairman of the EHT collaboration and director at the MPIfR.
This research was presented in two papers published on March 24, 2021 in The Astrophysical Journal. The EHT collaboration involves more than 300 researchers from Africa, Asia, Europe, North and South America. The international collaboration is working to capture the most detailed black hole images ever obtained by creating a virtual Earth-sized telescope. Supported by considerable international investment (including the ERC-funded Black Hole Camera project, for which Michael Kramer, director at the MPI für Radioastronomie, is one of the three principal investigators), the EHT links existing telescopes using novel systems — creating a fundamentally new instrument with the highest angular resolving power that has yet been achieved.
The EHT consortium consists of thirteen stakeholder institutes: the Academia Sinica Institute of Astronomy and Astrophysics, the University of Arizona, the University of Chicago, the East Asian Observatory, Goethe-Universität Frankfurt, Institut de Radioastronomie Millimétrique, Large Millimeter Telescope, Max-Planck-Institut für Radioastronomie, MIT Haystack Observatory, National Astronomical Observatory of Japan, Perimeter Institute for Theoretical Physics, Radboud University, and the Smithsonian Astrophysical Observatory.
The individual telescopes involved in the presented observations are: ALMA, APEX, the IRAM 30-meter Telescope, the James Clerk Maxwell Telescope (JCMT), the Large Millimeter Telescope (LMT), the Submillimeter Array (SMA), the Submillimeter Telescope (SMT), and the South Pole Telescope (SPT). Additional telescopes in the EHT since 2017 are the IRAM NOEMA Observatory, the Kitt Peak Telescope, and the Greenland Telescope (GLT).
The telescopes work together using a technique called very-long-baseline interferometry (VLBI), synchronising facilities around the world and exploiting the rotation of our planet to form one huge, Earth-size telescope. VLBI allows the EHT to achieve a resolution of 20 micro-arcseconds only. The data analysis to transform raw data to an image was performed with two specific computers (named correlators), hosted by the Max-Planck-Institut für Radioastronomie in Bonn and the MIT Haystack Observatory.
With the EHT data of M87, the team got to work to find out which models matched the observations. They run 120 different models of how matter behaves near a supermassive black hole and got 72 000 snapshots of these models at different running times, which they then compared with the new image. They found that only 73 snapshots, corresponding to 15 models, could explain the data. All of these 15 models assume magnetic fields of high intensity are present in the region around the black hole, suggesting that strong magnetic fields are key to launching the jet.
The following thirty-four researchers affiliated to MPIfR are co-authors of the paper (listed in order of appearance): Walter Alef, Rebecca Azulay, Anne-Kathrin Baczko, Silke Britzen, Ralph P. Eatough, Michael Janßen, Ramesh Karuppusamy, Dong-Jin Kim, Jae-Young Kim, Michael Kramer, Thomas P. Krichbaum, Rocco Lico, Jun Liu, Kuo Liu, Andrei P. Lobanov, Ru-Sen Lu Nicholas R. MacDonald, Nicola Marchili, Karl M. Menten, Cornelia Müller, Aristeidis Noutsos, Gisela N. Ortiz-León, Felix M. Pötzl, Eduardo Ros, Helge Rottmann, Alan L. Roy, Tuomas Savolainen, Lijing Shao, Pablo Torne, Efthalia Traianou, Jan Wagner, Norbert Wex, Robert Wharton, and J. Anton Zensus.
